Cast Iron Expansion Joint Pipe Fittings Detachable Transmission Forged Body

Name: Cast Iron Expansion Joint Pipe Fittings Detachable Transmission Forged Body
Brand: JINGNING
Price: 1 USD

Buy cheap Cast Iron Expansion Joint Pipe Fittings Detachable Transmission Forged Body product

Brand Name : JINGNING

Model Number : CC2F

Certification : CE

Place of Origin : China

MOQ : 1

Size : DN80----DN3000

Material : Ductile Iron，Stainless Steel,Carbon Steel

Warranty Time : 18 months

Technicals : Forged

Working Temperature : -30~400 ℃

Sample : Free

Delivery Time : 5-15 days

Product Name : Dismantling joint

Contact Now

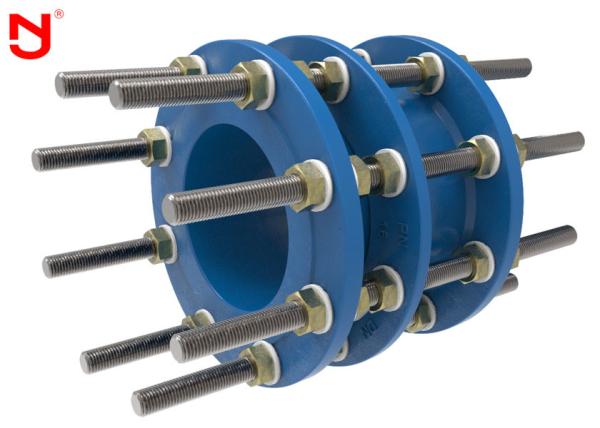

Cast iron CC2F detachable flanged transmission joint

Dismantling joint is designed to be the final closing piece in the pipe network, to ease the assembling and disassembling for later maintenance of a pump or valve. A standard adjusting range of 50mm on length and a small lateral and angular misalignment can be accommodated. This adjustability of the dismantling joint facilitates for easy removal of pumps and valves in circumstances of inspection, maintenance or replacement.

Cast Iron Expansion Joint Pipe Fittings Detachable Transmission Forged Body

cast iron expansion flanged universal dismantling joint expanion joint

C2F dismantling joint

CC2F double flanged power delivery joint

BF Single flange limited expansion joint

AF loose flange flexible joint

telescopic joint

Dismantling joint size	DN50-DN2000
Dismantling Joint Pressure Grade	PN10,PN16,PN25
Bolts, Nuts and Washers Material:	Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Tie rod material	Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Gasket material	For water or Gas : NBR Grade A For drinking water : EPDM rubber to BS2494:1990 type W For drinking water and sewage: SBR Grade F
Dismantling coating	Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request.
Application	Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, etc

Cast Iron Expansion Joint Pipe Fittings Detachable Transmission Forged Body

DN	Pipe Dia.	Flange joint size				Installation dimension		Expansion δ	Weight (kg)
		Flange outer dia.	Dia. of bolt hole	Bolt		Max	Min
				No.	Thickness
65	76	185	145	4	18	220	180	40	13.1
80	89	200	160	8	20	220	180	40	15.0
150	168	285	240	8	22	220	180	40	33.8
200	219	340	295	8	24	220	180	40	41.0
250	273	395	350	12	24	220	180	40	55.1
300	325	445	400	12	24	245	195	50	68.3
400	426	565	515	16	26	245	195	50	101.3

Our tenet: your trust is our honor and we will manufacture high- quality products for you.

we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
